Bring your own key

Let an organization route its Anthropic and OpenAI traffic through its own provider accounts. Configure the encryption key, switch BYOK on per organization, and watch key health and fallback across the platform.

With bring your own key (BYOK), an organization's owners and admins add their own Anthropic or OpenAI API keys. Requests those keys serve run on the organization's provider account, are metered at the organization's internal price, and are never charged to its wallet. Their own guide is Bring your own key.

A platform administrator's part is small:

Configure the encryption key once, for the deployment.
Switch BYOK on for each organization that asks.
Decide whether that organization's failed keys may fall back to platform capacity, and which providers it may add.
Watch key health and fallback across organizations.

Keys, model mappings, routing and prices stay with the organization. A platform administrator sees key metadata and health, never a secret.

Before you start

Requirement	Why
`TOKAMAK_CLAUDE_POOL_TOKEN_ENCRYPTION_KEY` is set on `tokamak-core`	Provider keys are encrypted with the same key as Claude Pool tokens, with a separate binding. The pool itself does not need to be switched on. Without the key, saving a provider key answers `503 byok_encryption_unconfigured`
The models the organization will use are in the catalog, active and priced	A key can only serve Tokamak catalog models, and its template maps only ids that exist. The list price is the default internal price and the price of fallback
Auth migration `000031` has run	It adds `org.providers.manage` and grants it to organization owners and admins

Rotate the encryption key the way you rotate it for Claude Pool, with the _PREVIOUS variables. Existing keys stay readable while you do, and the maintenance job re-encrypts them under the new key (see Background upkeep); once it has, the previous key can be removed. A server that cannot decrypt a key skips it, logs an error naming the key id, and records decrypt_failed as the key's last failure. It does not disable the key, so one misconfigured replica cannot switch keys off for the whole fleet. See Environment variables.

Keys only ever go to the provider's official API. Each provider template names its HTTPS endpoint, and nobody can change it through the API or the console. TOKAMAK_BYOK_ALLOW_ENDPOINT_OVERRIDE and TOKAMAK_BYOK_ENDPOINT_OVERRIDES exist for local development and tests, and core logs a warning at startup while they are on. Do not set them in production.

Switch BYOK on for an organization

In the admin console, open Organizations, select the organization and choose its BYOK tab. Tenants › BYOK opens the same tab from its overview. You need admin.workspace.manage.

The BYOK tab of an organization in the admin console: BYOK enabled, platform fee 0%, allow fallback to platform on, Anthropic and OpenAI allowed and Google off, and an empty key table — The BYOK tab of a test organization. Open full size ↗

Setting	Default	What it does
BYOK enabled	Off	The `byok` organization feature, also shown under Features. While it is off, the organization has no Providers page, and every provider-key route except delete answers `403 byok_disabled`. Keys it already has stop serving but stay stored until they are deleted
Platform fee	0%	Requests the organization's keys serve carry no platform charge. The fee is fixed at 0%: the setting and the organization's Platform fee on your keys billing row exist so a fee can be introduced later, but nothing charges one
Allow fallback to platform	On	When one of the organization's keys fails, the request is retried once on platform capacity and charged at list price. Off means no such request runs on platform capacity, whatever the organization chose: a rejected or disabled key answers `503 byok_key_unavailable`, and any other provider error is relayed as sent
Allowed provider kinds	Anthropic and OpenAI	Which provider templates the organization may add keys for. A key of a kind you switch off stops serving

The key table lists every stored key, and Delete removes one. It stops serving at once and its secret is erased; its usage history stays. Delete works whether or not BYOK is on, so switching the feature off never leaves a secret you cannot remove.

Every change is recorded in the admin audit log: byok.settings.update and byok.credential.delete.

Watch every organization

Tenants › BYOK lists every organization with its BYOK state, its number of keys, their health, the last seven days of key-served requests and their internal value, and what fallback cost. Select a row to open that organization's BYOK tab.

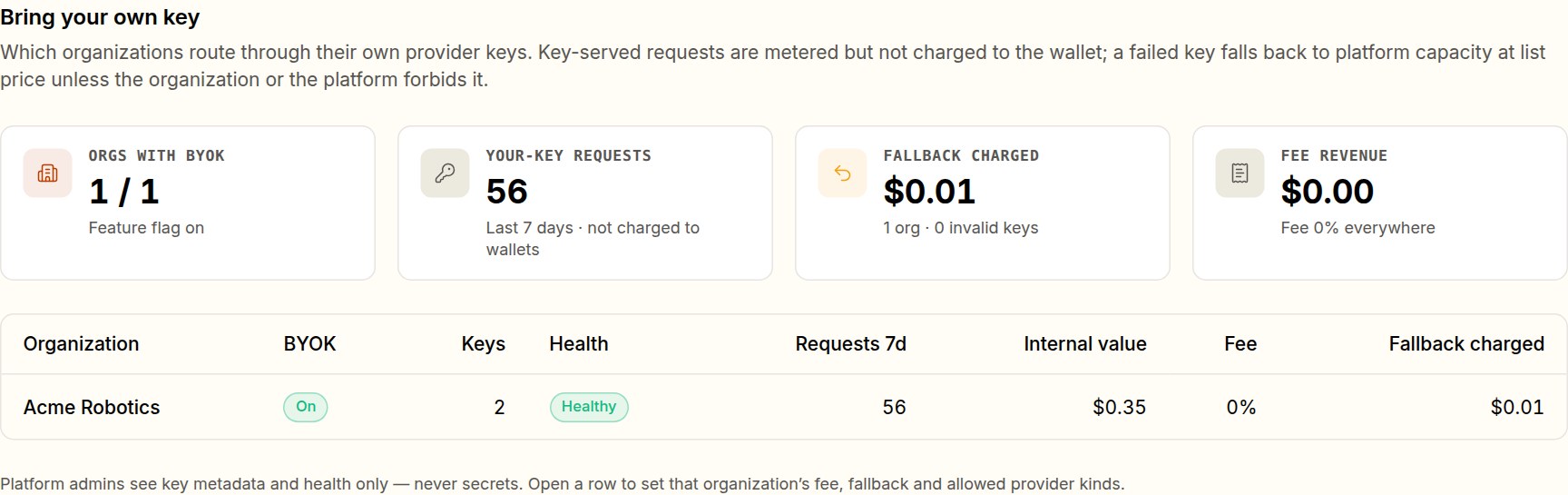

The BYOK overview in the admin console: tiles for organizations with BYOK, requests served by organization keys, fallback charged and fee revenue, and one organization with two healthy keys — The overview, narrowed to the test organization for this screenshot. Open full size ↗

Healthy means every key is active. Invalid counts keys that were disabled automatically after a 401; the organization must rotate them.
Fallback charged is the list-price cost of requests that fell back from a failed key. A steady fallback cost usually means a key has been failing for a while.
Your-key requests are metered but not charged to any wallet.

What the platform keeps

A key-served request goes through the same request path as any other, except for the upstream credential and the charge:

Admission. Usage limits apply (access policies only filter tokamak/auto candidates; a request that names a model is not checked against them). The usage-limit reservation is taken at the internal price. No credit is checked or held, so an organization with an empty wallet can use its own key.
The usage row. credential_source is org_key, with the key's id. estimated_cost_usd is the internal price, and list_cost_usd is the list value. The cost to serve is 0 and cost_basis is byok_internal. A fallback request is tagged org_key_fallback and admitted and charged like any platform request.
Budgets. A budget counts key-served requests at the internal price unless the organization set it to Only Tokamak-charged spend (exclude_org_key). A breach answers the usual 429 usage_limit_exceeded.
Capacity. A key's 429 rests that organization's provider account, not the platform's providers.
Stored Responses. A Responses object a key created lives in the organization's OpenAI account. Its route records the key, so retrieve, delete, cancel and input_items go to that key, and previous_response_id prefers it. A disabled key, or BYOK switched off, answers 503 byok_key_unavailable; once the key is deleted, those calls answer 404.
Isolation. A secret is bound to its organization and key when it is encrypted, so it cannot be moved to another organization or row. It is never returned: only its first and last characters are.

Background upkeep

tokamak-core runs a byok-maintenance job on its job runner:

Pass	When	What it does
Re-encrypt	Hourly, 200 keys at a time	Re-seals every key that is not under the current encryption key. A key this server cannot decrypt is logged and left for the next sweep, never disabled
Re-verify	Daily, first run 24 hours after start	For each active key, lists the account's models: a `401` disables the key as on the request path. Each enabled mapping is checked again for free: a model the account can no longer use is switched off as No access or Not listed for this key, and a verified one records when it last passed

Every change the job makes is written to the key's event history, which the organization sees under Providers › Activity.

API

Method and path	Purpose
`GET /v1/admin/byok/organizations`	The overview: every organization, with totals
`GET /v1/admin/organizations/{id}/byok`	One organization's settings and key metadata
`PUT /v1/admin/organizations/{id}/byok`	Change `allow_fallback` or `allowed_kinds`. `fee_bps` accepts only `0`
`DELETE /v1/admin/organizations/{id}/byok/credentials/{credentialId}`	Delete one stored key and erase its secret
`PATCH /v1/admin/organizations/{id}/features`	Switch the `byok` feature, like any other

All five need admin.workspace.manage. The organization's own routes, under /v1/admin/active-org/provider-credentials, need org.providers.manage, and its prices, under /v1/admin/active-org/model-prices, need org.models.manage. None of them accepts an inference API key.

Known limits

No platform fee. The fee is fixed at 0%; charging one is a later change.
Providers. Anthropic and OpenAI. Google is not available yet.
