Data capture

Data capture records every inference request an organization sends through Tokamak together with the fully reassembled response: every message, tool definition, tool call, thinking block, stop reason and usage figure. Records are tagged by the client that made them, stored in a bucket you control, indexed for search, grouped into sessions you can label, and exported as training data in standard formats.

This guide is for two readers: the organization administrator who switches capture on and decides what is kept, and the data or research team who tags runs, reviews what was recorded and exports datasets.

Three things to know before you start:

• It is an organization opt-in. Capture is off for every organization until a platform administrator switches it on, and then it starts in metadata only. Your organization's owners and admins (org.admin) choose full capture, retention and destination.
• It never touches billing. A capture record is not billing evidence and grants nothing. Cost lives in Analytics; the two join on the request's execution_id.

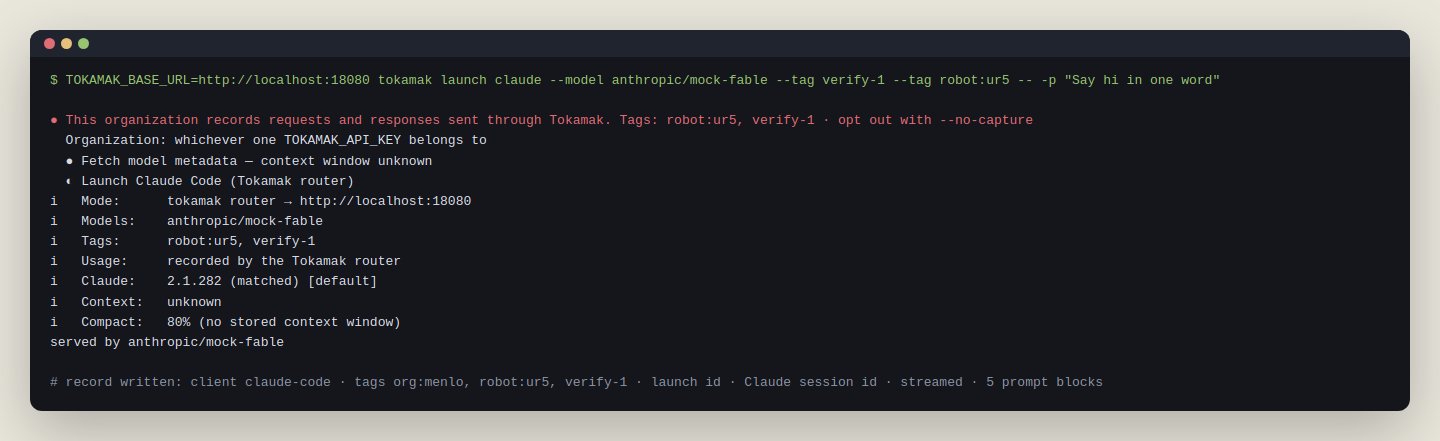

• Members know. Every tokamak launch prints a recording notice while capture is on, and members can opt a launch out or keep metadata only when the organization allows it.

1. Switch it on (platform administrator)

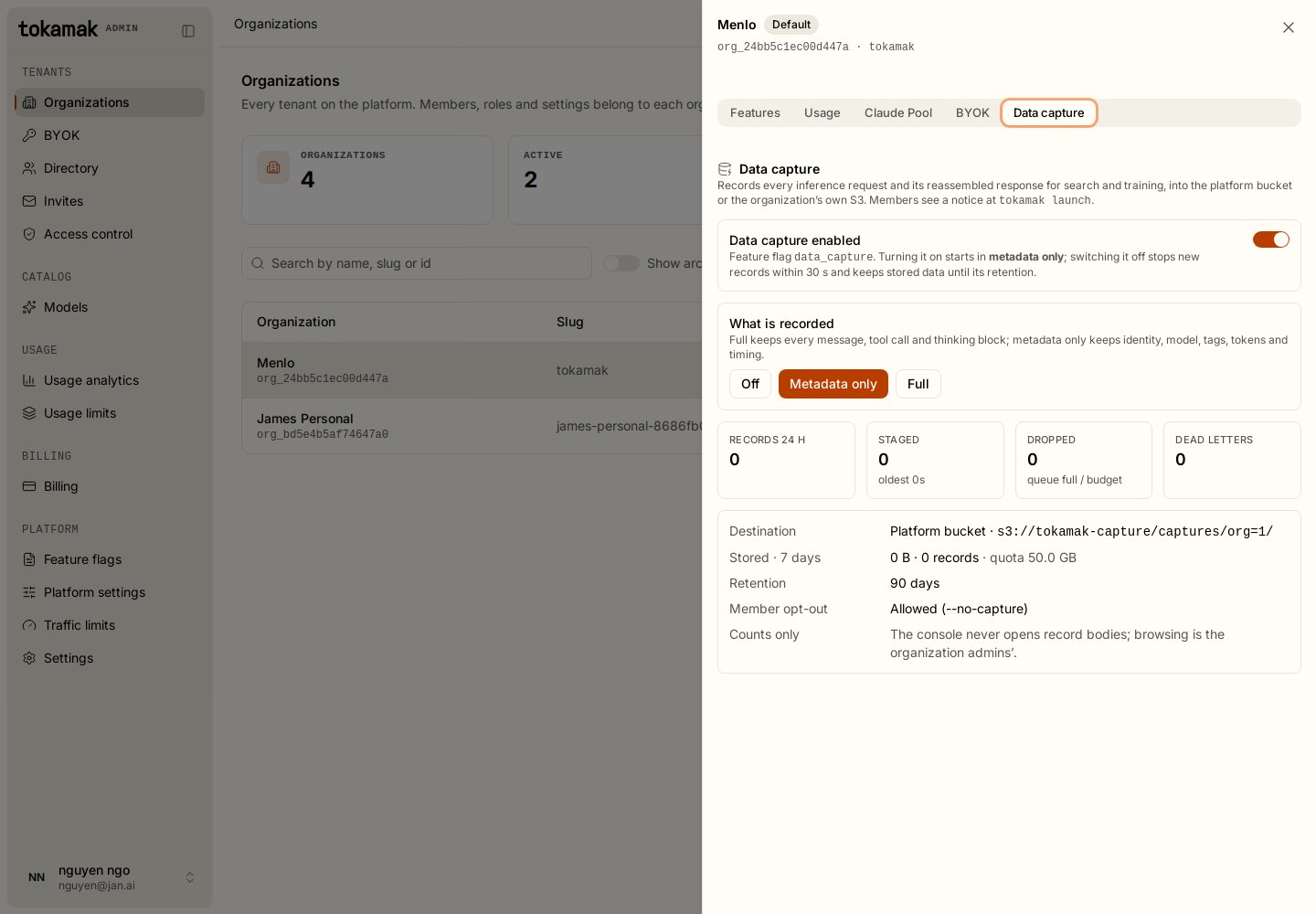

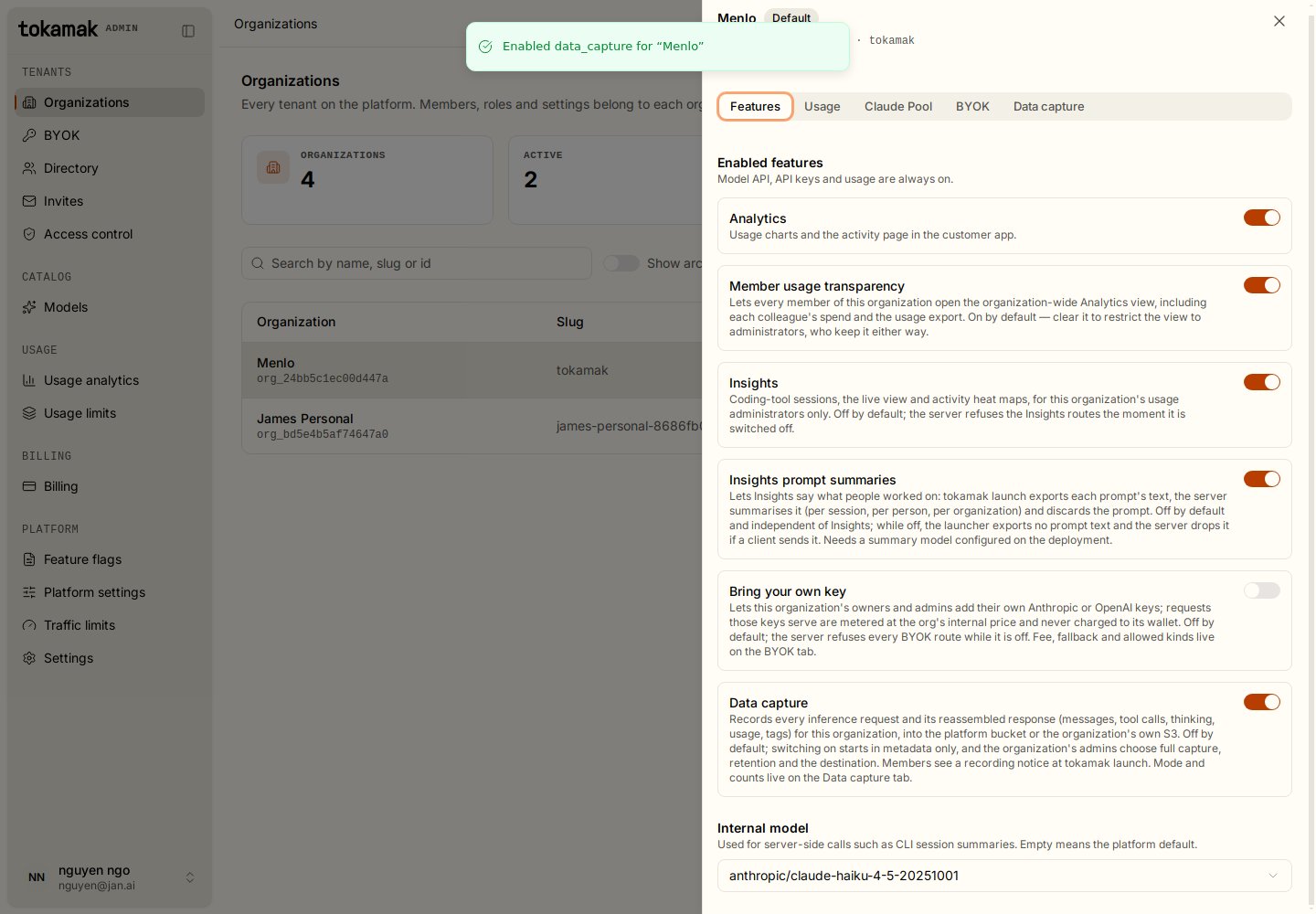

In the platform console open Organizations → your organization → Features and turn on Data capture. The Data capture tab on the same sheet shows the mode, the destination and live counts. The console shows counts only; it never opens a record body.

A switch takes effect within 30 seconds. Switching off stops new records and keeps stored data until its retention.

2. Decide what is kept (organization administrator)

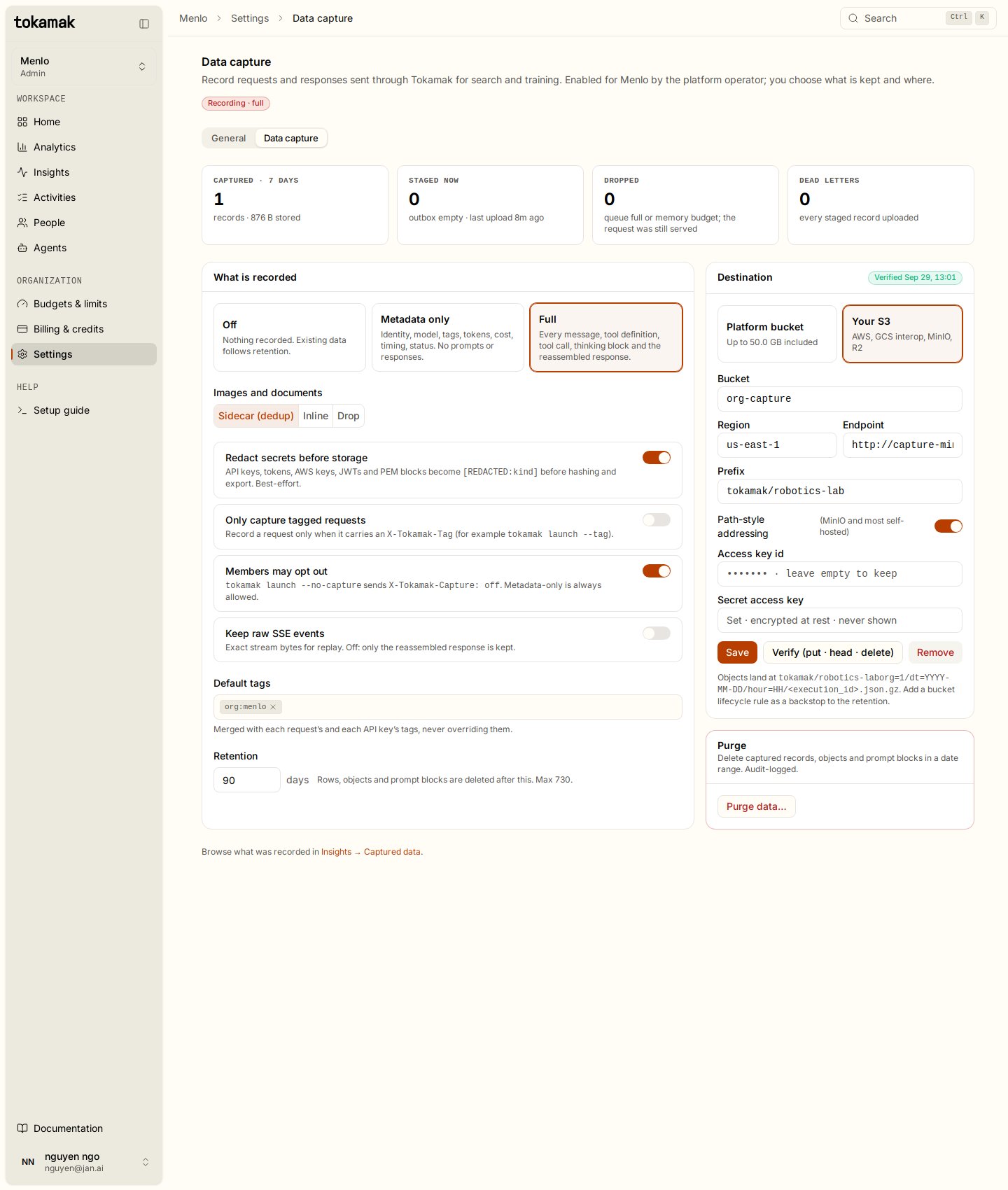

In the app open Settings → Data capture. You need org.admin.

Destination

Platform bucket stores records in the deployment's bucket under a quota shown on the page. Your S3 stores them in a bucket you own on any S3-compatible service (AWS, GCS interop, MinIO, R2). Enter bucket, region, endpoint, prefix, path-style addressing and an access key; the secret is encrypted at rest and never shown again. Verify runs a put, head and delete with those credentials and records the result. A stored destination that stops working shows its last error here and records wait as dead letters until you fix it and retry.

The endpoint must be a public https host. Private, loopback, link-local and single-label hosts are refused so that Tokamak cannot be pointed at internal services.

Add a lifecycle rule on your bucket matching the retention as a backstop.

Purge deletes captured records, objects and prompt blocks in a date range. It is audit-logged, deletes objects first and keeps the index row of anything it could not delete so a repeated purge retries exactly that.

3. Tag what you collect

Tags are the labels your team filters, searches and exports by. Decide a convention before you start collecting; a useful one names the experiment, the task and the environment, for example exp:grasp-v3, task:pick-and-place, robot:ur5.

From tokamak launch

# One launch, two tags
tokamak launch claude --tag exp:grasp-v3 --tag task:pick-and-place

# Comma list works too
tokamak launch codex --tag=exp:grasp-v3,robot:ur5

# Tag every launch from this machine by default
tokamak config set-tag team:robotics
tokamak config clear-tag

Without --tag the launcher uses TOKAMAK_TAG (comma list), then the saved default tags. The first source present wins; they are not merged on the client. Every agent tokamak launch starts (Claude Code, Cowork, Codex, Copilot, Jan Agent, Pi, Oh My Pi, OpenCode, Droid) sends the same tags on every request it makes.

From your own client

Send the X-Tokamak-Tag header on any request to /v1/chat/completions, /v1/messages or /v1/responses. Repeat the header or send a comma list.

curl https://<gateway>/v1/chat/completions \
  -H "Authorization: Bearer $TOKAMAK_API_KEY" \
  -H "X-Tokamak-Tag: exp:grasp-v3, task:pick-and-place" \
  -d '{"model": "anthropic/claude-sonnet-5", "messages": [{"role": "user", "content": "..."}]}'

Tags are normalised on the server: split on commas, trimmed, lower-cased, kept only when they match ^[a-z0-9][a-z0-9._:/@-]{0,63}$, de-duplicated, sorted, at most 16. Anything else is dropped, never rejected; the request still serves and the record counts the dropped values in tags_rejected. Tags are labels, never authorization, routing or pricing, and providers never see them.

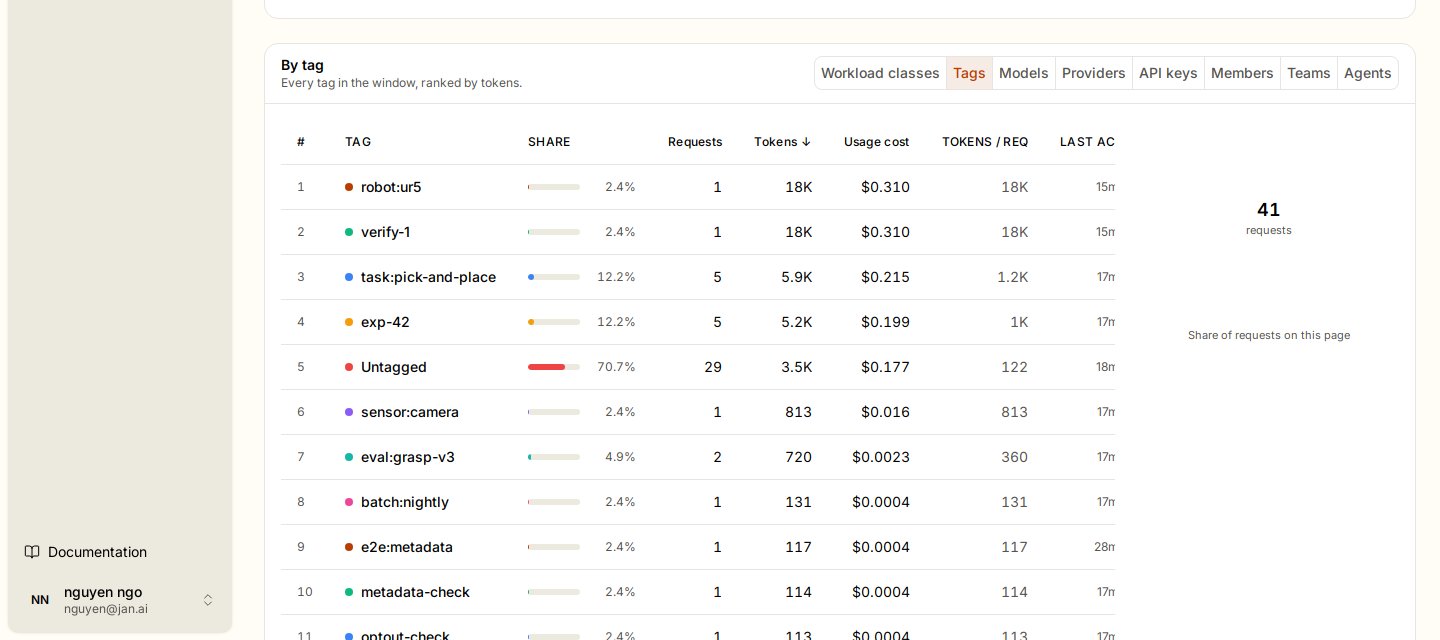

Tags also appear in Analytics as a Tags breakdown, so you can see requests, tokens and cost per experiment without opening a single record.

4. What gets recorded, and when

Once capture is on, every request made with an API key of the organization is a record: successes, upstream errors, transport failures, cancelled and cut streams (marked partial). The decision per request is:

capture = feature on && mode != off
          && !(require_tag && the request has no tags)
          && !(members may opt out && X-Tokamak-Capture: off)
          && the agent's own setting is not Off
mode    = X-Tokamak-Capture: metadata ⇒ metadata only for this request
          the agent's own setting is Metadata only ⇒ metadata only

An agent's own data capture setting is applied last. It can only lower what is recorded, and no header or tag raises it. Use it to keep a bot that handles sensitive data out of Captured data.

A record appears in Captured data one to two seconds after the response finishes. The pipeline is off the request path: the request never waits for capture, and a slow or unreachable bucket costs nothing to the inference call. Records wait durably in an outbox until the bucket accepts them; if the queue overflows during a burst the request still serves and the loss is counted as Dropped on the settings page.

A record is captured at most once, so a dropped_count above zero means data is missing, not duplicated. Bucket failures never drop data: rows wait, then become Dead letters you can retry once the destination is fixed.

The record

{
  "envelope_version": 1, "execution_id": "…", "captured_at": "…",
  "capture_mode": "full", "content_omitted": false,
  "identity": {"organization_id": 1, "user_id": "42", "team_id": 3, "api_key_id": "…"},
  "client":   {"client_name": "claude-code", "launch_id": "…", "client_session_id": "…",
               "tags": ["exp:grasp-v3", "task:pick-and-place"], "tags_rejected": 0, "request_id": "…"},
  "routing":  {"route": "/v1/messages", "dialect": "anthropic_messages", "stream": true,
               "model_requested": "…", "model_upstream": "…", "provider": "…"},
  "request":  {"bytes": 41204, "sha256": "…", "headers": {…},
               "body": {"fields": {…}, "tools_ref": "sha", "system_refs": ["sha"], "message_refs": ["sha", "…"]}},
  "response": {"status": 200, "terminal_event": "message_stop", "partial": false, "final": {…}},
  "usage":    {"prompt_tokens": 4, "completion_tokens": 1811, "cache_read_tokens": 39880, "cache_creation_tokens": 1102},
  "timing":   {"started_at": "…", "ended_at": "…", "duration_ms": 8400, "time_to_first_token_ms": 1900},
  "redaction": {"enabled": true, "method": "regex", "version": "v1", "count": 1}
}

Prompts are stored as content-addressed blocks: the tool list, each system block and each message is written once per organization and referenced by hash, so a 200-turn coding session stores each earlier turn once instead of 200 times. The app and the exports rehydrate them for you. Reading the bucket directly, follow the *_refs to blocks/.

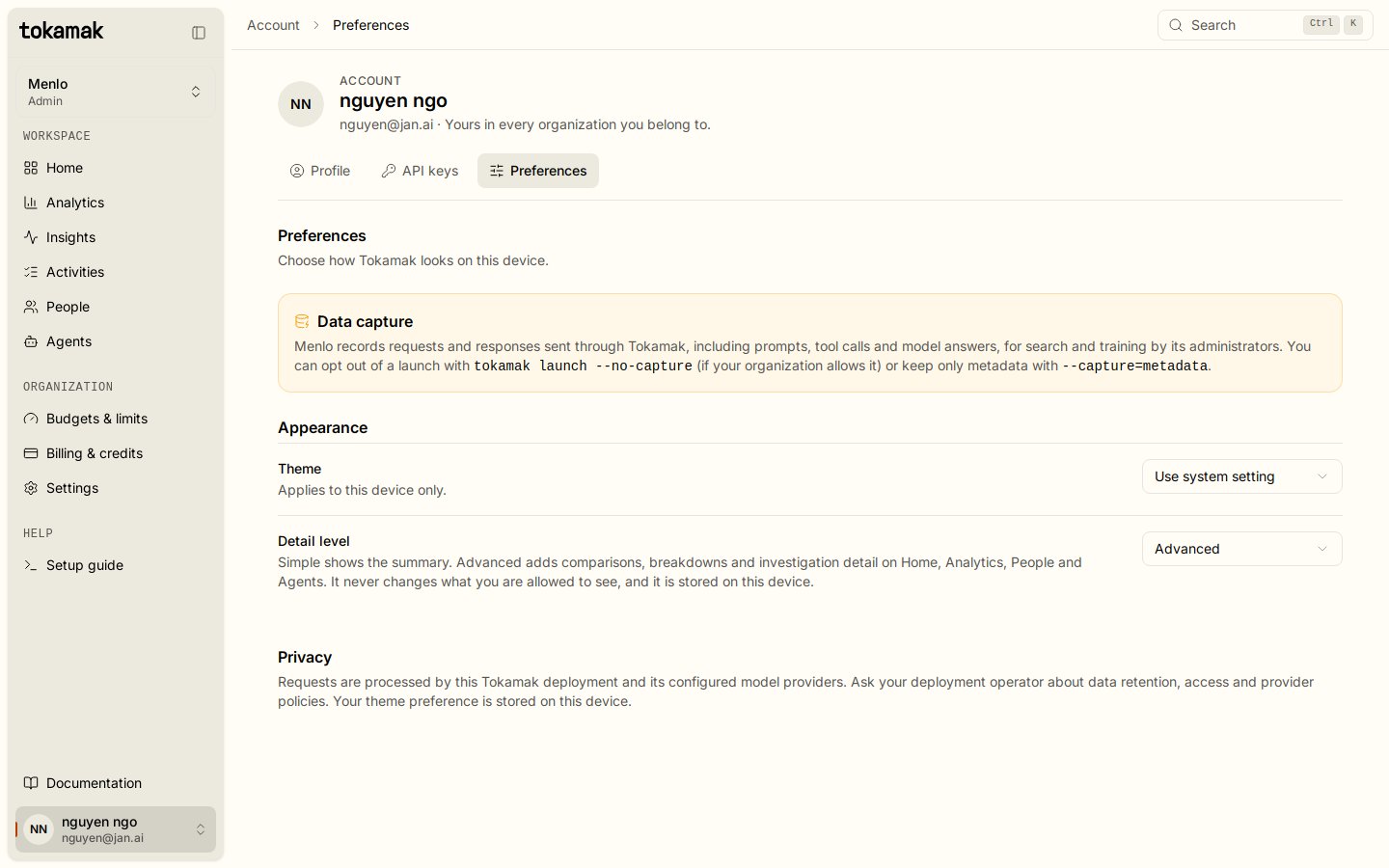

What members see

tokamak launch claude --no-capture          # opt this launch out (when the organization allows it)
tokamak launch claude --capture=metadata    # keep the usage row, omit content
TOKAMAK_CAPTURE=off tokamak launch codex    # environment fallback

5. Browse and search

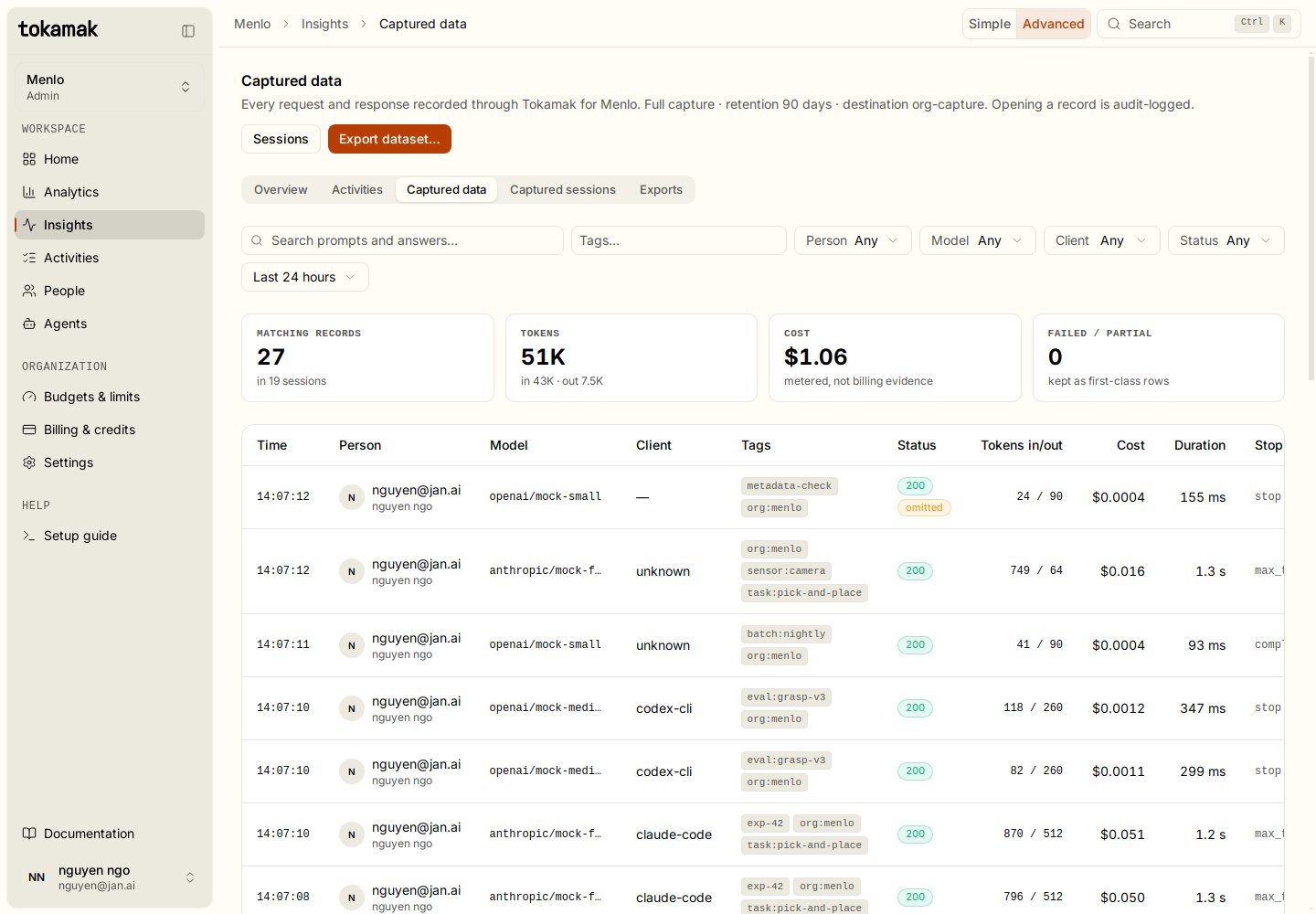

Open Insights → Captured data. It lists every record with time, person, model, client, tags, status, tokens, cost and duration. Filter by tag, person, model, client, status and time window, or search the text of the first user turn and the last assistant answer. The tiles at the top count the matching records and their sessions, tokens and metered cost.

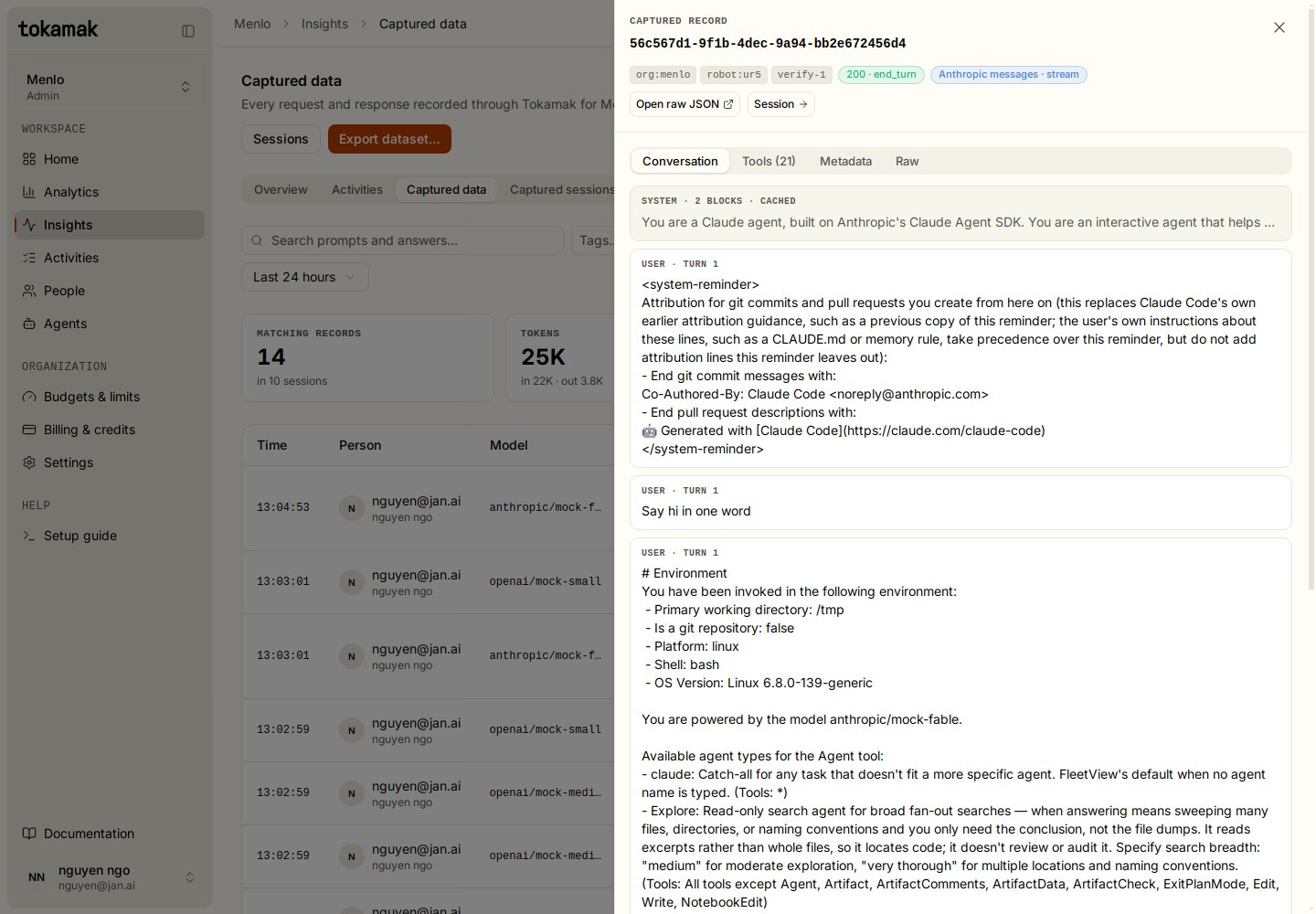

Click a row to open the record: the Conversation rebuilt from the prompt blocks (system, each user and assistant turn, tool calls and results, thinking), the Tools the client offered, Metadata (identity, routing, timing, usage, redaction) and the Raw envelope. Open raw JSON gives a time-limited link to the object itself.

6. Sessions and labels

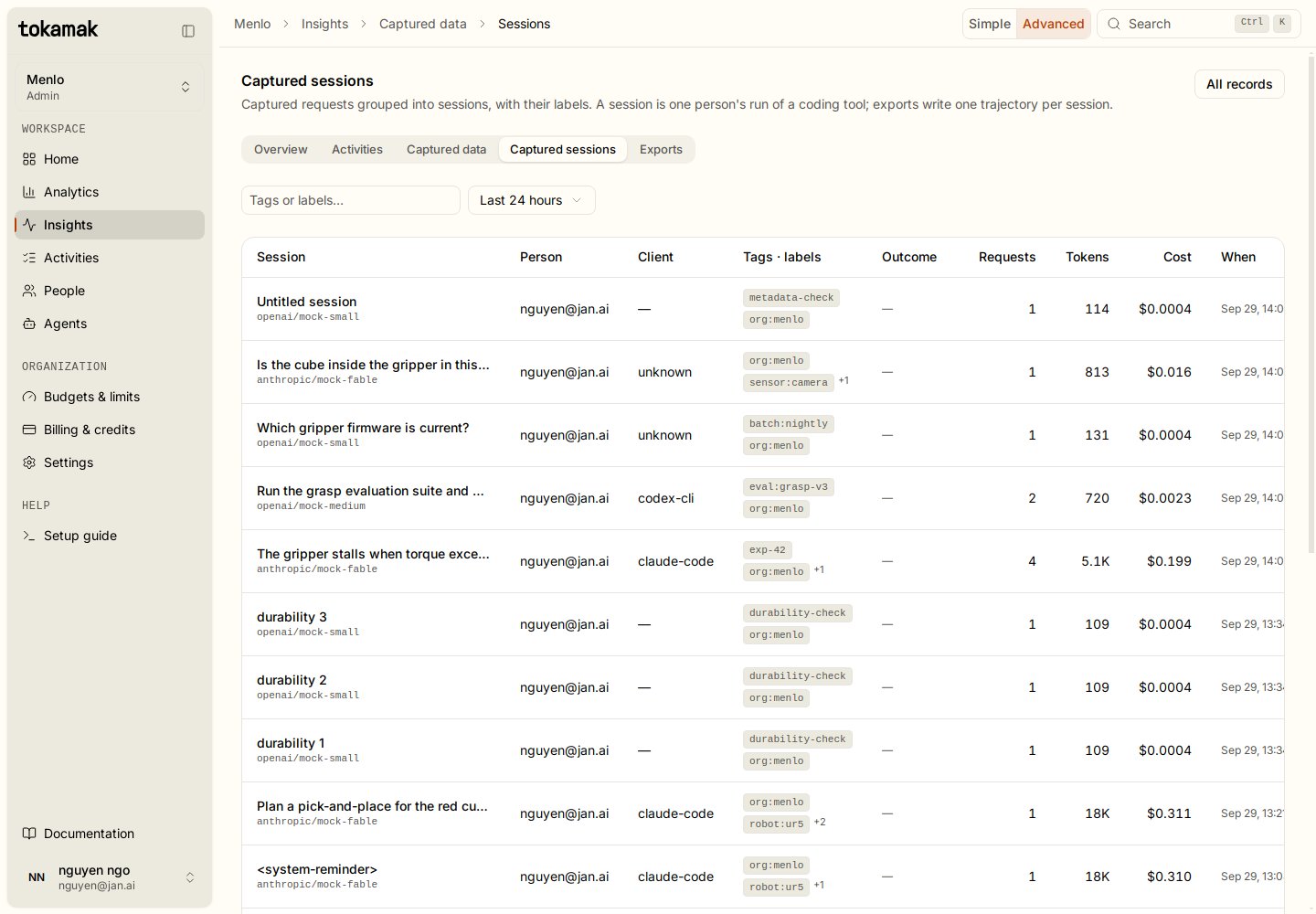

A session is one run of a coding tool: records sharing the client's session id (or the launch id when the client sends none). Insights → Captured sessions lists them with their first prompt, person, client, tags, labels, outcome, requests, tokens and cost.

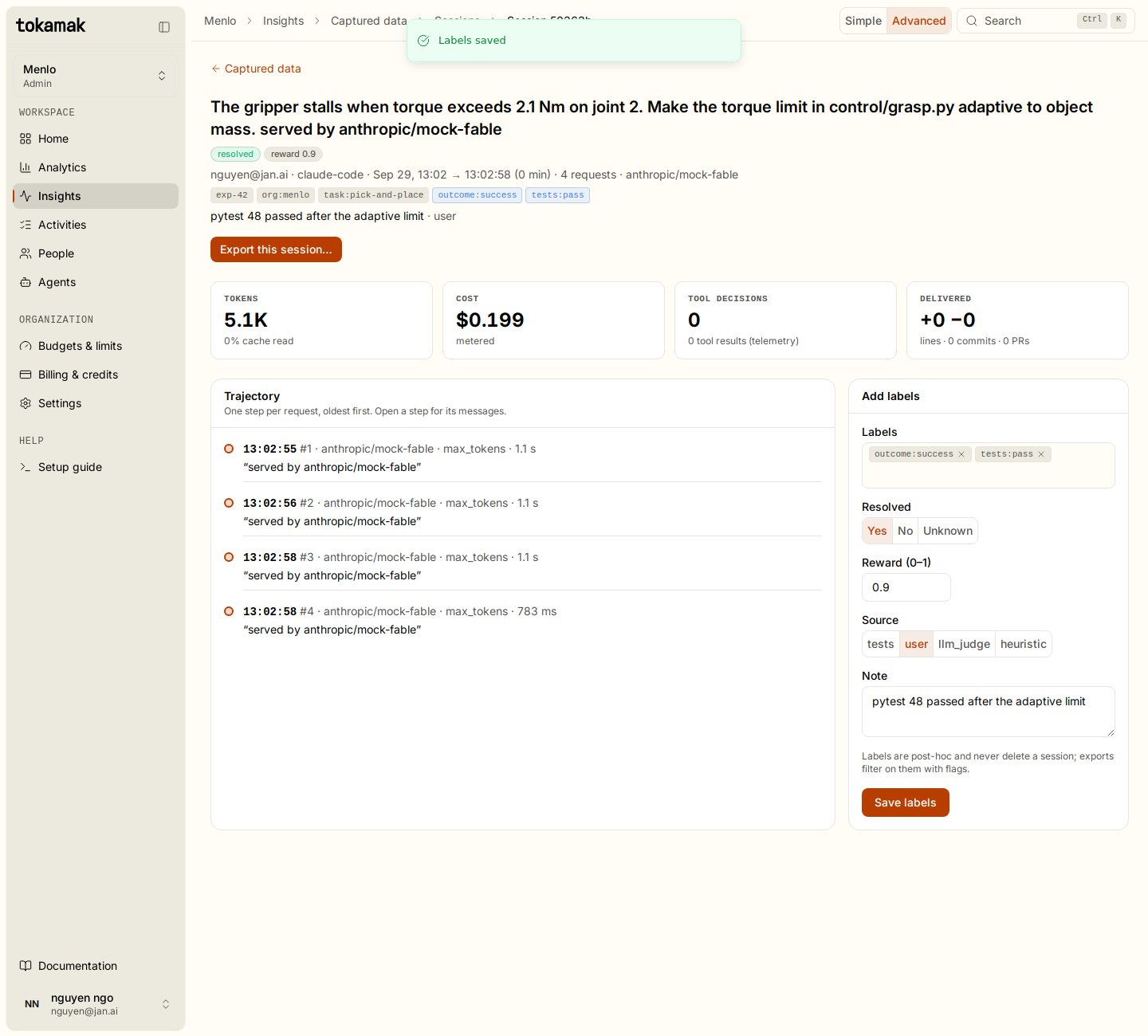

Open a session to see its trajectory, one step per request, and to label it:

• Labels: free tags such as outcome:success or tests:pass.
• Resolved: yes, no or unknown. Exports can keep resolved sessions only.
• Reward: 0 to 1.
• Source: who judged it (tests, user, LLM judge, heuristic).
• Note: free text.

Labels can also be written by a script, for example from your CI after the tests ran:

curl -X POST https://<gateway>/v1/admin/active-org/captures/sessions/<session_key>/labels \
  -H "Authorization: Bearer $MANAGEMENT_KEY" \
  -d '{"labels": ["tests:pass"], "resolved": true, "reward": 0.9, "label_source": "tests", "note": "48 passed"}'

7. Export a dataset

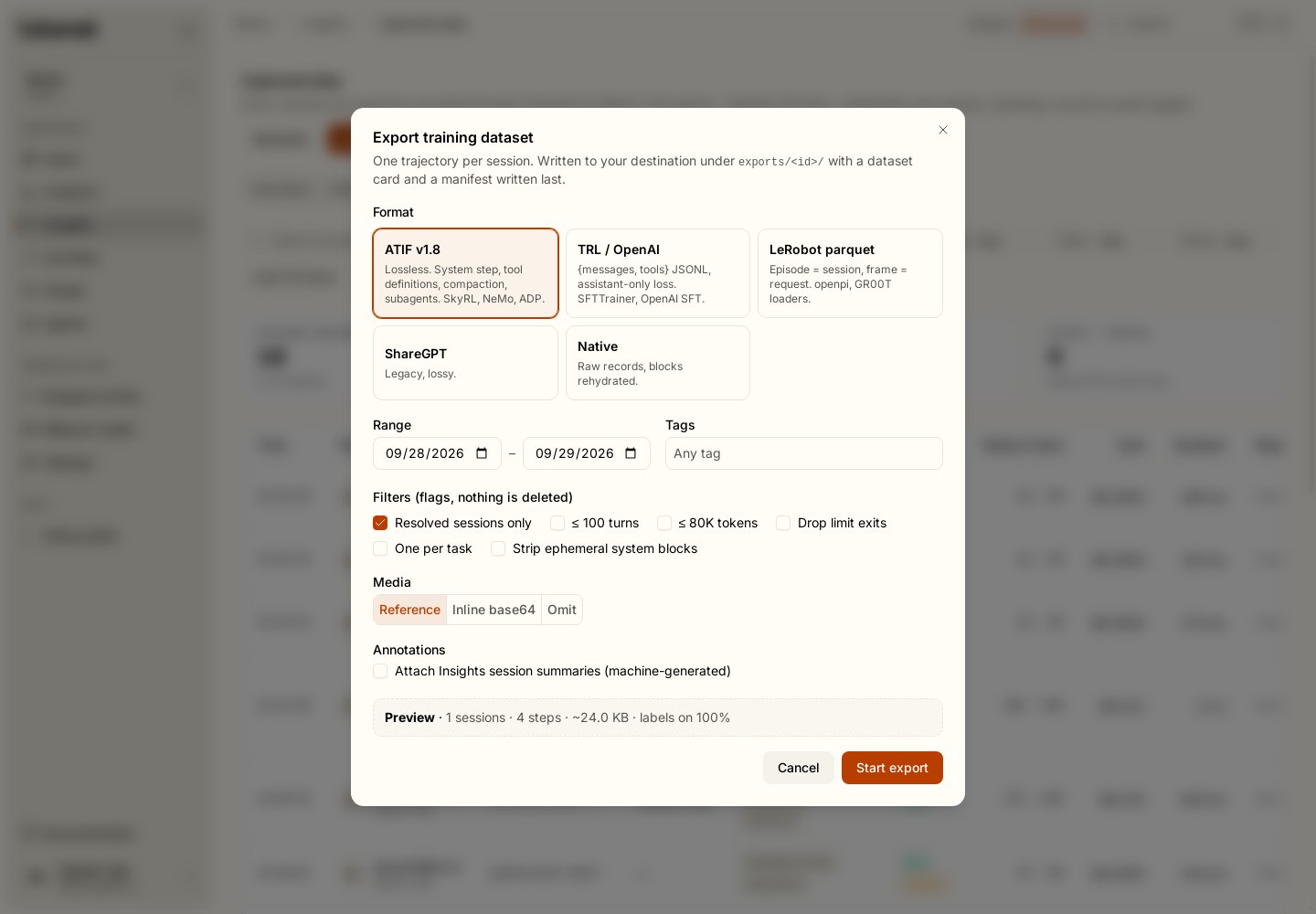

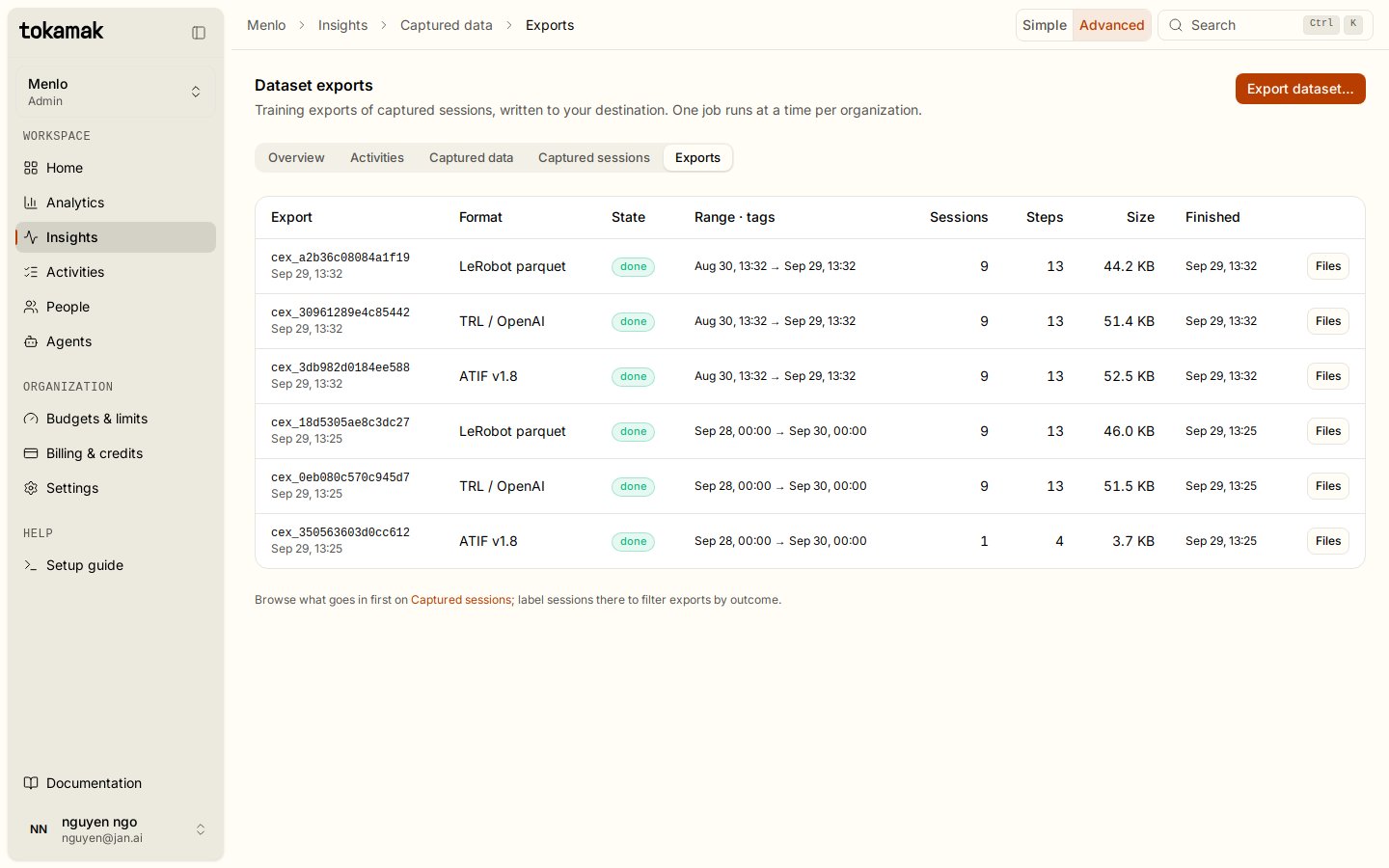

Export dataset… on Captured data, or Export this session… on a session, queues an export. One export runs at a time per organization. It writes one trajectory per session to your destination under exports/<export_id>/, followed by a dataset card and, last, the manifest.

Filters select, never delete: resolved sessions only, at most N turns, at most N tokens, drop sessions that ended on a limit, one session per task:* tag, strip ephemeral system blocks. Media writes images as typed tokamak-blob:<sha> references, inline data URIs, or omits them. Annotations attaches the Insights session summary when your organization has prompt summaries on.

Every export line carries a _tokamak block (session key, person, client, models, start and end time, step count, token totals, cost, exit reason, tags, labels, resolved, reward) so a row can always be traced back to its session and filtered after the fact.

Reading an export

manifest.json is written last: a reader that finds it finds every part. README.md is a Hugging Face dataset card with the licence placeholder, tags, size, and the personal and sensitive information section to fill in.

import gzip, json, s3fs

fs = s3fs.S3FileSystem(endpoint_url="https://s3.example.com")
root = "my-capture-bucket/tokamak/org=1/exports/cex_3db982d0184ee588"
manifest = json.load(fs.open(f"{root}/manifest.json"))

trajectories = []
for f in manifest["files"]:
    if f["name"].startswith("data/"):
        with gzip.open(fs.open(f"{root}/{f['name']}", "rb"), "rt") as fh:
            trajectories += [json.loads(line) for line in fh]

print(manifest["sessions"], "sessions,", manifest["steps"], "steps")
print(trajectories[0]["extra"]["_tokamak"]["tags"])

A TRL export loads straight into datasets:

from datasets import load_dataset
ds = load_dataset("json", data_files="data/part-*.jsonl.gz", split="train")
# ds[0]["messages"], ds[0]["tools"], ds[0]["_tokamak"]

8. Reading the bucket directly

The store is laid out for query engines, so you never need an export to analyse it:

<prefix>/org=<id>/dt=<YYYY-MM-DD>/hour=<HH>/<execution_id>.json.gz   record envelopes
<prefix>/org=<id>/blocks/<sha[0:2]>/<sha>.json.gz                     prompt blocks
<prefix>/org=<id>/blobs/<sha[0:2]>/<sha>                               images and documents
<prefix>/org=<id>/sessions/<hash>.manifest.json                        session manifests
<prefix>/org=<id>/exports/<export_id>/…                                exports

-- DuckDB: requests, tokens and cost per tag for one day
INSTALL httpfs; LOAD httpfs;
SELECT unnest(client.tags) AS tag,
       count(*)                       AS requests,
       sum(usage.completion_tokens)   AS out_tokens
FROM read_json_auto('s3://my-capture-bucket/tokamak/org=1/dt=2026-09-30/hour=*/*.json.gz')
GROUP BY 1 ORDER BY 2 DESC;

Records reference prompts by hash (request.body.tools_ref, system_refs, message_refs); read the matching object under blocks/ to rehydrate. Blocks are canonical JSON after redaction: the store is lossless in content, not byte-exact in key order.

Privacy and governance

• Redaction runs before hashing and storage when it is on, so a hash never confirms a guessed secret. It skips only a thinking block's signature and a redacted thinking block's data. It is regex-based and best-effort; review before you publish a dataset.
• Audit. Every switch, settings, destination, retry and purge action, and every record opened, writes an admin audit entry.
• Access. Browsing, labelling and exporting require org.admin in the app or a management key. Platform administrators see counts, never bodies. Members see their own recording notice and control their own launches.
• Retention deletes the object first, then the index row; a failed delete is retried on the next sweep.
• Not captured: token ids and logprobs (no provider returns them), local tool execution (the next request carries whatever result the agent chose to send), anything a client sends outside Tokamak.

Nothing is being captured?

API

Everything the app does is available to scripts with a management key. Paths are relative to the gateway.

See the engineering reference for the full envelope, the pipeline's guarantees and the deployment settings: data-capture.md and tags.md.
